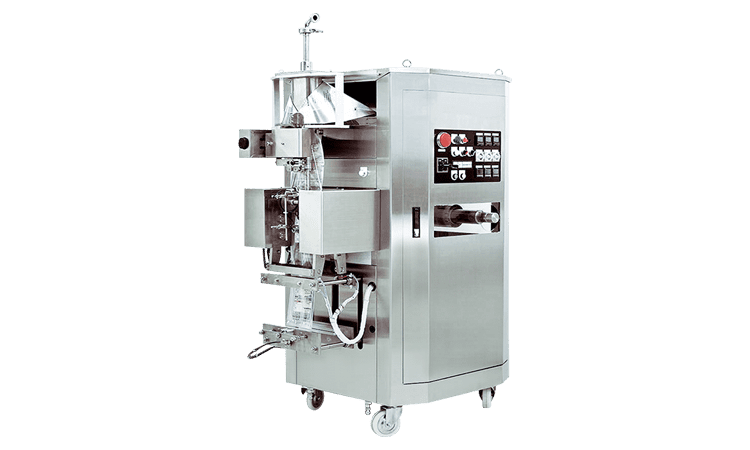

Liquid & Paste Packaging Machine

TOP-M200L

High Temperature Liquid/Paste Automatic Form-Fill-Seal Packaging Machine

Package Style:

Pillow Seal

Packing Type :

Paste
Liquid
Features
  • Apply to high temperature liquid filling up to 95°C.
  • Obtained Europe CE certificate.
  • Apply to various liquid / high viscosity paste product.
  • Keyence PLC control, easy setting / control / adjustment.
  • Easy-tear zig-zag cutting on sealing.
  • Firm multilineal sealing.
  • Productivity increasing.
  • Large package to meet the sanitary standards.
  • Product protection to decrease the environmental influences as microorganisms and humidity... etc.
Applicable
  • Liquid and mixture product: Water, tomato sauce, chili sauce, spaghetti sauce, soup, soybean milk, tapioca balls, Konjac jelly, coconut jelly, etc.
  • High viscosity product: Bean paste, miso paste, mayonnaise, fruit paste, syrup, cheese, chocolate paste, fish paste, cuttlefish paste, liquid egg, taro paste, hot grass jelly, etc.
  • Industrial product: Gel, cooling gel, etc.
Specifications
Model TOP-M200L
Dimension (L) 1250 mm x (W) 900 mm x (H) 1850 mm
Volume 100-3000 c.c.
Filling Temperature 5°C-95°C
Bag Size (W) 50-200 mm, (L) 100-350 mm
Film Width 130-430 mm
Film Material Laminated Film - Nylon+LLDPE
Capacity 6-35 bags/min (Depends on product property, weight and filling speed.)
Air Pressure 6 kg/cm², 5 HP
Power 3Φ, 220V/380V, 50/60Hz, 1.5kW

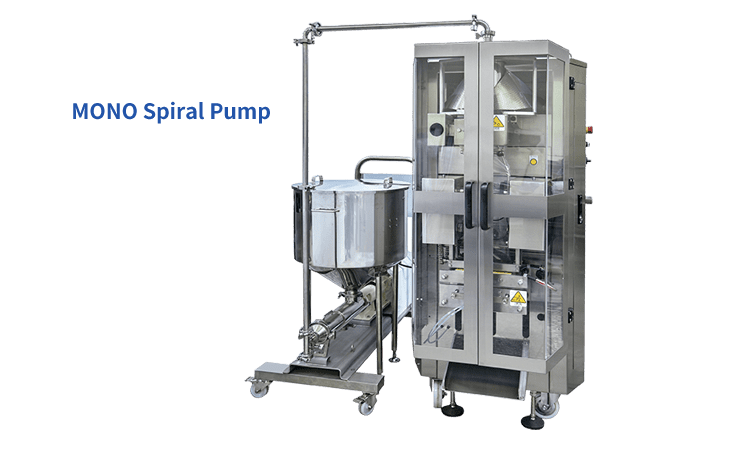

Integrated Filling Pump MONO Spiral Pump / Rotary Lobe Pump / Vacuum Filler
