ZAY LON CO., LTD.
TOP-8-320

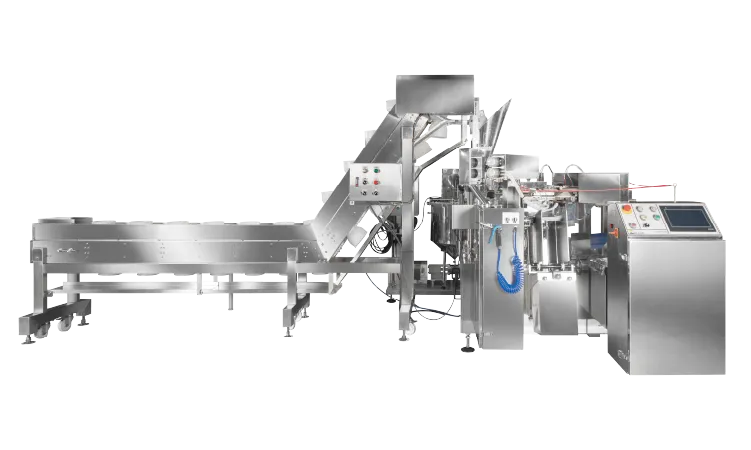

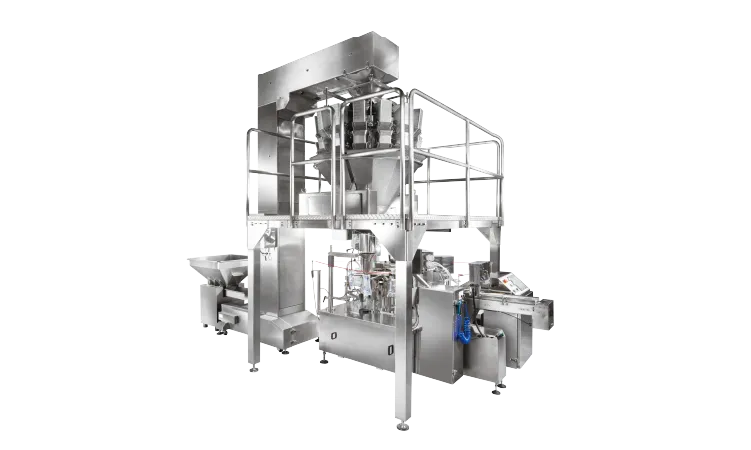

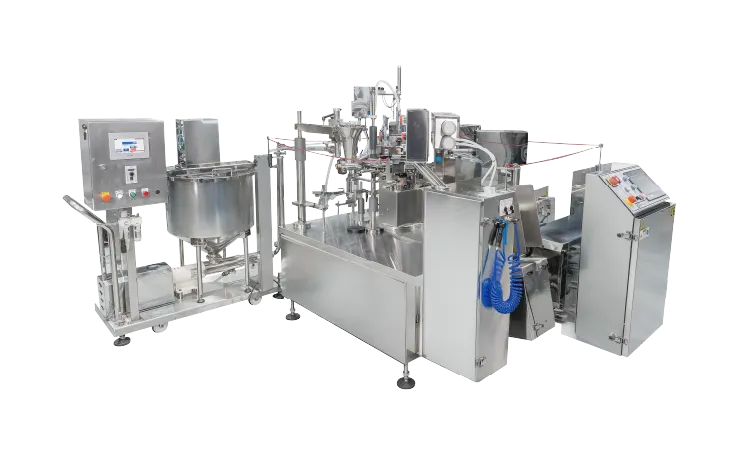

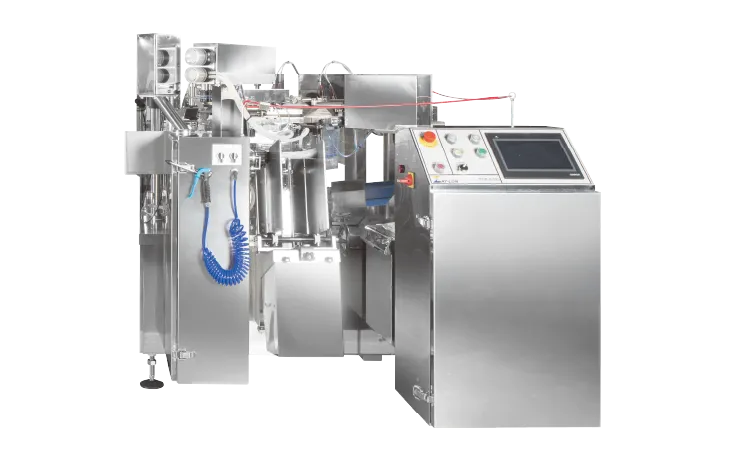

Automatic Pouch Filling-Sealing Machine
Package Style：
4 Side Seal
Standing Pouch
Tube Type
Packing Type ：
Snack
Prepared Food
Powder
Paste
Liquid
Frozen Food
- Multifunction packing solution to integrate various weighing system, liquid filling pump, auger filler, etc.
- Flexible applications for solid, liquid, solid & liquid mixture, paste, frozen food, prepared food and powder product.
- Flexible applications for various pre-made bag as 4-side sealed pouch, standing pouch, tube pouch and zipper pouch.
- Fully water-proof for cleaning.
- Japan Omron PLC Control.
- Japan Omron HMI touch screen.
- Safety device distributed around the machine to ensure the safety.
- The width of allgrippers width can be changed simultaneously by one switch, humanized design for saving of the manpower and time.
- Display of abnormal faults as seal wire broken, overload and insufficient air supply.
- Mixture product: Prepared food, beef soup, tapioca ball, agar jelly, Konjac, coconut jelly, spaghetti sauce, side dish, etc.
- Liquid & paste product: Chicken essence, soup, sauce, juice, jam, health drink, etc.
- Solid product: Cookie, rice cracker, candy, snack, candied fruit, braised dishes, mini sausage, bean, coffee bean, pet food, etc.
- Frozen product: Chicken nuggets, dumpling, meat ball, fish ball. seafood, frozen soy beans, hot pot ingredients, frozen vegetables, etc.
- Powder product: Seasoning powder, food additives, etc.
| Model | TOP-8-320 |
|---|---|
| Dimension | (L) 2300 mm x (W) 1990 mm x (H) 1730 mm |
| Bag Size | (W) 150~320 mm, (L) 200~450 mm |
| Bag Material | Laminated Bag, Aluminum Foil Bag, PE Bag |
| Capacity | 10~35 bags/min. |
| Water Consumption | Seal Cooling 2 L/min. (Air Suction Device 7 L/min.) |
| Air Consumption | 350 L/min. |
| Power | 3Ф, 220V/380V, 50/60Hz, 4.5 kW |
