ZAY LON CO., LTD.
ERL-1301/2000

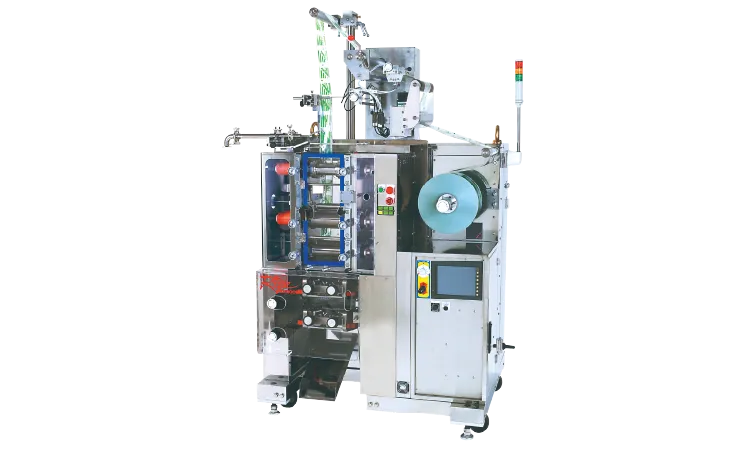

High Speed Automatic Liquid/Paste Filling & Packaging Machine
Package Style：
3 Side Seal
Pillow Seal
Packing Type ：
Paste
Liquid

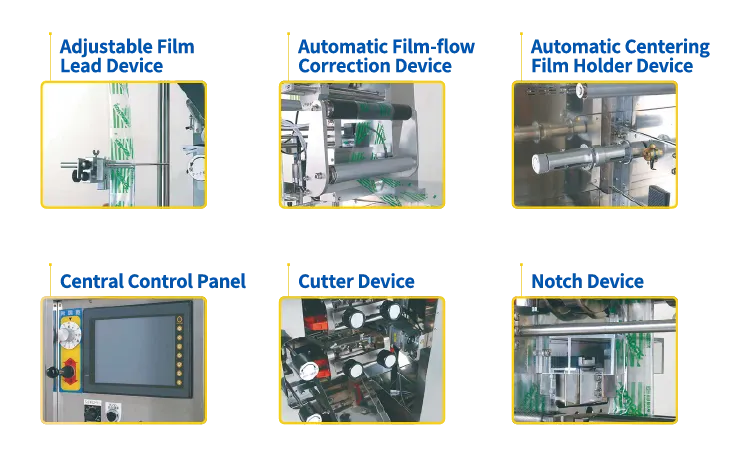

- Various operations are possible via touch panel.
- Setting information is managed in files to store multiple product data.
- Adopting a joystick for fine adjustment functionality.
- Maintenance is made easy by installing door on the rear side
- Achieving space-saving design by organizing the area around the Film Roll Holder.
| MODEL | ERL-1301 | ERL-2000 |
|---|---|---|
| Filling Material | Liquid/Paste | |
| Packaging Forms | 3-Side Sealed, 4-Side Sealed | |
| Packaging Capacity | 20~300 sachets/min | |
| Film Feeding Quantity | 20 m/min (Max) | |
| Filling Capacity | 1~200 c.c. | |
| Sachet Height Range | 2 Wings: 125~230 mm 3 Wings: 85~155 mm 4 Wings: 65~115 mm 6 Wings: 45~80 mm |
2 Wings: 160~250 mm 3 Wings: 110~165 mm 4 Wings: 80~120 mm 6 Wings: 55~85 mm |
| Width Adjustment Range | 3-Side Sealed: 25~120 mm 4-Side Sealed: 35~130 mm |
3-Side Sealed: 50~190 mm 4-Side Sealed: 60~200 mm |
| Film Width | 50~260 mm | 100~400 mm |
| Film Roll Diameter | Ø400 mm (Max) | |
| Power Consumption | 3Φ, 200V, Total: Approx. 7 kW | |
| Air Usage | Not applied (Applicable through Optional Selection) | |
| Dimension | (W) 1150 × (D) 950 × (H) 2050 mm |
(W) 1300 × (D) 1200 × (H) 2350 mm |
| Weight | Approx. 650 kg | Approx. 700 kg |
