ZAY LON CO., LTD.

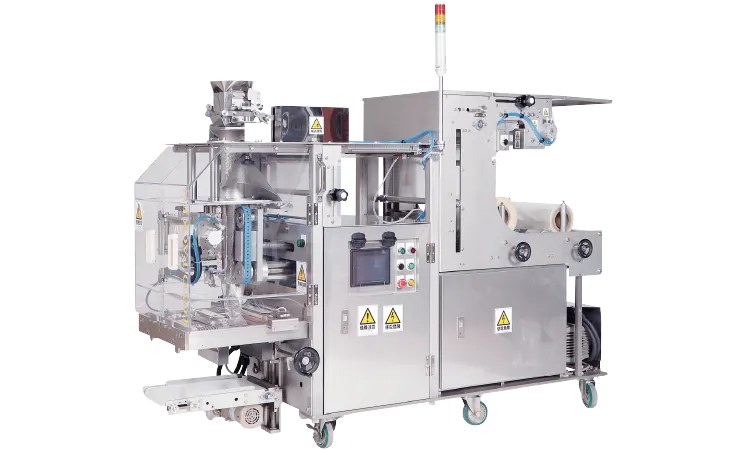

TSV-350V2B
Automatic Packaging Machine
Package Style：
Pillow Seal
Packing Type ：
Vegetable & Fruit
Snack
Granule
Frozen Food
Component
- Servo Drive System: High precision, low mechanical wear, and stable operation.
- Vacuum Film Feeding: Prevents slipping and film damage; ensures accurate bag length and sealing alignment.
- Hygiene & Safety Standards: Easy-to-clean stainless steel design with standard safety sensors for maximum protection.
- Intuitive Interface: Full-color touch screen with multi-recipe storage for rapid changeovers.
| MODEL | TSV-350V2B Belt Type |
TSV-450V2B Belt Type |
TSV-550V2B Belt Type |
|---|---|---|---|
| Max Bag Length | 300 mm | 300 mm | 300 mm |
| Max Bag Width | 160 mm (Film Width 350 mm) |
210 mm (Film Width 450 mm) |
260 mm (Film Width 550 mm) |
| Min Bag Width | 70 mm (Film Width 170 mm) |
80 mm (Film Width 190 mm) |
100 mm (Film Width 230 mm) |
| Standard Capacity | 50 bags/min (For Bag Lengths Under 180 mm) |
40~45 bags/min (For Bag Lengths Under 250 mm) |
40 bags/min (For Bag Lengths Under 280 mm) |
| Power | 3Φ, 200V, 30A, 3.7 kW |
3Φ, 200V, 30A, 3.9 kW |
3Φ, 200V, 30A, 3.9 kW |
| Air Source | 0.5 Mpa | 0.5 Mpa | 0.5 Mpa |
| Air Consumption | 160 nL/min | 160 nL/min | 160 nL/min |
| Dimension | (L) 1994 mm (W) 671 mm (H) 1304 mm |
(L) 1805 mm (W) 808 mm (H) 1502 mm |
(L) 2077 mm (W) 955 mm (H) 1688 mm |
