ZAY LON CO., LTD.

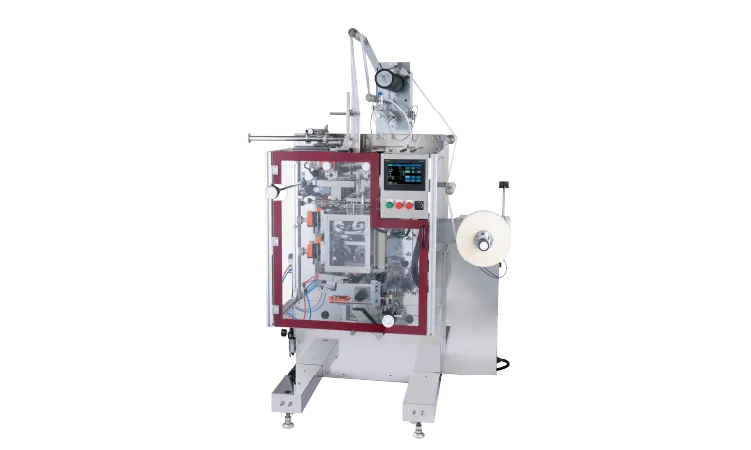

KCL-314
Automatic Liquid/Paste Filling & Packaging Machine
Package Style：
Pillow Seal
Packing Type ：
Paste
Liquid
- Various operations can be performed via the touch panel.
- Setting information is managed in files to store multiple product details.
- Capable of filling and packaging liquid stick-type products.
- The adoption of a heating seal roll system enables air-free filling and packaging.
| MODEL | KCL-314 |
|---|---|
| Filling Material | Liquid/Paste |
| Packaging Forms | Vertical Pillow Type |
| Packaging Capacity | 20~100 sachets/min |
| Filling Capacity | 1~80 c.c. |
| Sachet Height Range | 2 Wings: 120~210 mm 3 Wings: 80~150 mm 4 Wings: 60~110 mm 6 Wings: 40~75 mm |
| Width Adjustment Range | 20~50 mm |
| Film Width | 120 mm (Max) |
| Film Roll Diameter | Ø450 mm (Max) |
| Power Consumption | 3Φ, 200V, Total: Approx. 6 kW |
| Air Usage | Not applied (Applicable through Optional Selection) |
| Dimension | (W) 1100 mm × (D) 1400 mm × (H) 1850 mm |
| Weight | Approx. 600 kg |
